Concept component. Each class of the user domain model should inherite from this class to use the ConceptModel integrated services. Serialization, DynamicInvocation and Initialization are the integrated services provided by ConceptRTModel. More...

Detailed Description

Concept component. Each class of the user domain model should inherite from this class to use the ConceptModel integrated services. Serialization, DynamicInvocation and Initialization are the integrated services provided by ConceptRTModel.

Examples:: Machine/main.cpp.

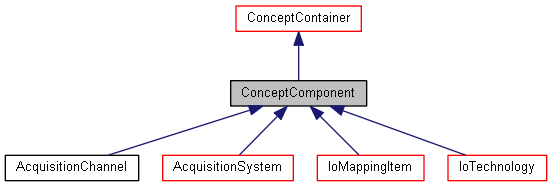

Inheritance diagram for ConceptComponent:

Public Member Methods
	ConceptComponent ()
	Default constructor. More...

	~ConceptComponent ()
	Destructor. More...

void	GetChildren (IReferenceList< ConceptElement > &children)
	Gets the children of this component. More...

ConceptElement &	AddNew (const BaseConceptFactory &factory, const PCChar8 name)
	Adds a new element to the component. More...

void	ReadFrom (IDataStore &dataStore, IMessageCollector *messages=NULL)
	Reads from. More...

void	WriteTo (IDataStore &dataStore) const
	Writes to. More...

void	Clear ()
	Clears the content of this container. More...

Public Member Methods inherited from ConceptContainer
const bool &	GetIsXmlPropertyVisible () const
	Show the xml field in the invocation. More...

const bool &	GetIsXmlPropertyVisible ()
	Show the xml field in the invocation. More...

void	SetIsXmlPropertyVisible (const bool &value)
	Show the xml field in the invocation. More...

const bool &	GetIsXmlPropertyReadOnly () const
	Control access on the xml file shown in the invocation. More...

const bool &	GetIsXmlPropertyReadOnly ()
	Control access on the xml file shown in the invocation. More...

void	SetIsXmlPropertyReadOnly (const bool &value)
	Control access on the xml file shown in the invocation. More...

	ConceptContainer ()
	Default constructor. More...

	~ConceptContainer ()
	Destructor. More...

bool	Contains (ConceptElement &element) const
	Query if this object contains the given element. More...

void	ResolveLinks ()
	Resolve links. More...

void	Invoke (const DynamicInvocationRequest &request, DynamicInvocationResult &result)
	Invokes the object fields and methods. More...

ConceptElement *	Find (const PCChar8 path) const
	Searches into the container and sub-containers an element. More...

void	Accept (IContainerVisitor &visitor)
	Accepts IContainerVisitor to access the object published fields. More...

virtual ConceptElement *	FindByName (const PCChar8 name) const
	Searches into the container an element. More...

template<class ElementSubType >
ElementSubType *	FindByName (const PCChar8 name) const
	Searches into the container an element of a certain type. More...

void	RetrieveProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	Retrieve provided factories. More...

void	RetrieveProvidedFactories (BaseConceptFactories &factories)
	RetrieveProvidedFactories. More...

void	RetrieveFactories (BaseConceptFactories &factories) const
	Retrieve factories. More...

Public Member Methods inherited from ConceptElement
const bool &	GetIsInvocable () const
	Controls if the objet should be shown in the invocation. More...

const bool &	GetIsInvocable ()
	Controls if the objet should be shown in the invocation. More...

void	SetIsInvocable (const bool &value)
	Controls if the objet should be shown in the invocation. More...

const bool &	GetIsSerialized () const
	Controls if the objet should be serialized. More...

const bool &	GetIsSerialized ()
	Controls if the objet should be serialized. More...

void	SetIsSerialized (const bool &value)
	Controls if the objet should be serialized. More...

	ConceptElement ()
	Default constructor. More...

	ConceptElement (const ConceptElement &right)
	Default constructor. More...

ConceptElement &	operator= (const ConceptElement &right)
	Assignment operator. More...

const StaticString< ConceptElementNameMaxLength > &	GetName () const
	Gets the name. More...

void	SetName (const PCChar8 name)
	Sets a name. More...

String	GetPath () const
	Gets the path of the ConceptElement. More...

ConceptContainer *	GetContainer () const
	Gets the container of the ConceptElement. More...

template<class ContainerType >
ContainerType *	GetContainerOfType () const
	Gets the container of a certain type the ConceptElement. More...

ConceptContainer *	GetRootContainer () const
	Gets the root container of the ConceptElement. More...

virtual const String	GetDisplayName () const
	Gets the display name. More...

virtual void	CopyDataFrom (const ConceptElement &source)
	Copies the data from another ConceptElement. More...

virtual void	CopyFrom (const ConceptElement &source)
	Copies itself from a given source. More...

virtual BaseConceptFactory &	GetFactory () const =0
	Gets the ConceptElement factory. More...

ConceptElement &	GetProvider () const
	Gets the provider of the ConceptElement if defined, throws a ConceptException otherwise. More...

template<class T >
T &	GetProvider () const
	Gets the provider of the ConceptElement if defined and of type T, throws a ConceptException otherwise. More...

bool	GetHasProvider () const
	Tests the existence of a provider. More...

template<class T >
bool	GetHasProvider () const
	Tests the existence of a provider of type T. More...

virtual ConceptElement *	Clone () const
	Makes a deep copy of this object. More...

void	RetrieveProvidedFactories (BaseConceptFactories &factories)
	Retrieve provided factories. More...

Variant	GetPropertyMetaData (PCChar8 propertyName, PCChar8 metaDataName, const Variant &defaultValue=Variant::GetVariantNull()) const
	Returns a metadata string corresponding to a property and a metadata name. More...

Additional Inherited Members
Protected Member Functions inherited from ConceptContainer
virtual Int32	Add (ConceptElement &element)
	Adds element. More...

virtual Int32	Add (ConceptElement &element, const PCChar8 name)
	Adds element. More...

Protected Member Functions inherited from ConceptElement
void	Initialize ()
	Initializes this object. More...

virtual BaseConceptFactory &	InternalGetFactory () const
	Gets the object factory. More...

virtual void	RetrieveElementProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	RetrieveElementProvidedFactories. Used by the macro CONCEPT_PROVIDED_COMPONENT_BEGIN More...

Constructor & Destructor Documentation

ConceptComponent ( )

Default constructor.

~ConceptComponent ( )

Destructor.

Methods Documentation

ConceptElement& AddNew	(	const BaseConceptFactory &	factory,
		const PCChar8	name
	)

Adds a new element to the component.

Parameters

factory	The ConceptElement factory.
name	The new element's name.

Returns: The new element

Warning: Non-Deterministic: The new element is created on the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

void Clear ( )

virtual

Clears the content of this container.

Warning: Non-Deterministic: Deletion of content will remove items from the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Implements ConceptContainer.

Reimplemented in AcquisitionSystem.

void GetChildren ( IReferenceList< ConceptElement > & children )

Gets the children of this component.

Parameters

children [in,out] Children.

void ReadFrom	(	IDataStore &	dataStore,
		IMessageCollector *	messages = `NULL`
	)

virtual

Reads from.

Parameters

dataStore	[in,out] The dataStore.
messages	[in,out] (optional) The messageCollector to collect warning or error messages. Default = NULL.

Implements ConceptElement.

void WriteTo ( IDataStore & dataStore ) const

virtual

Writes to.

Parameters

dataStore [in,out] The dataStore.

Implements ConceptElement.
