InputOutput Class Reference

Base class for IOs. More...

Detailed Description

Base class for IOs.

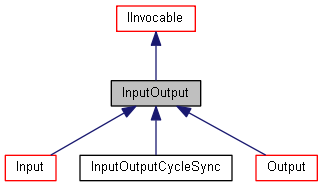

Inheritance diagram for InputOutput:

Public Member Methods
	InputOutput ()
	Default constructor. More...
virtual bool	SetMapping (IoMappingItem &item)=0
	Sets the IO mapping. More...
virtual void	Clear ()=0
	Clear the mapping. More...
void	SetLogicalName (PCChar8 logicalName)
	Sets the IO logical name. More...
const BaseStaticString &	GetLogicalName () const
	Gets the IO logical name. More...
Int32	GetInputOutputIdentifier () const
	Gets the IO auto identifier. More...
Public Member Methods inherited from IInvocable
virtual void	Invoke (const DynamicInvocationRequest &request, DynamicInvocationResult &result)=0
	Invokes the object fields and methods. More...

Constructor & Destructor Documentation

InputOutput

(

)

Default constructor.

Methods Documentation

virtual void Clear ( )

pure virtual

Clear the mapping.

Implemented in InputOutputCycleSync, OutputGenericAcyclic< ElementType >, OutputGenericAcyclic< Float32 >, OutputGenericAcyclic< Int64 >, OutputGenericAcyclic< Int16 >, OutputGenericAcyclic< bool >, OutputGenericAcyclic< Int8 >, OutputGenericAcyclic< Float64 >, OutputGenericAcyclic< Int32 >, OutputGenericCyclic< ElementType >, OutputGenericCyclic< Float32 >, OutputGenericCyclic< Int64 >, OutputGenericCyclic< Int16 >, OutputGenericCyclic< bool >, OutputGenericCyclic< Int8 >, OutputGenericCyclic< Float64 >, OutputGenericCyclic< Int32 >, InputGenericAcyclic< ElementType >, InputGenericAcyclic< Float32 >, InputGenericAcyclic< Int64 >, InputGenericAcyclic< Int16 >, InputGenericAcyclic< bool >, InputGenericAcyclic< Int8 >, InputGenericAcyclic< Int32 >, InputGenericAcyclic< Float64 >, InputGenericCyclic< ElementType >, InputGenericCyclic< Float32 >, InputGenericCyclic< Int64 >, InputGenericCyclic< Int16 >, InputGenericCyclic< bool >, InputGenericCyclic< Int8 >, InputGenericCyclic< Int32 >, and InputGenericCyclic< Float64 >.

Int32 GetInputOutputIdentifier

(

)

const

Gets the IO auto identifier.

Returns

The IO auto identifier.

Creation order is used to define the value of the auto identifier. Used by the diagnostic to help to identifiy IO with non logical name set.

const BaseStaticString& GetLogicalName

(

)

const

Gets the IO logical name.

Returns

The IO logical name.

void SetLogicalName

(

PCChar8

logicalName

)

Sets the IO logical name.

Parameters

logicalName

The logical name.

Warning

{Must be defined. Should be unique.}

virtual bool SetMapping ( IoMappingItem &  item )

pure virtual

Sets the IO mapping.

Parameters

item	The mapping item.

Used by the InpoutOutputSystem at Map time.

Returns

True if the mapping is compatible, false if not.

Implemented in InputOutputCycleSync, OutputGenericAcyclic< ElementType >, OutputGenericAcyclic< Float32 >, OutputGenericAcyclic< Int64 >, OutputGenericAcyclic< Int16 >, OutputGenericAcyclic< bool >, OutputGenericAcyclic< Int8 >, OutputGenericAcyclic< Float64 >, OutputGenericAcyclic< Int32 >, OutputGenericCyclic< ElementType >, OutputGenericCyclic< Float32 >, OutputGenericCyclic< Int64 >, OutputGenericCyclic< Int16 >, OutputGenericCyclic< bool >, OutputGenericCyclic< Int8 >, OutputGenericCyclic< Float64 >, OutputGenericCyclic< Int32 >, InputGenericAcyclic< ElementType >, InputGenericAcyclic< Float32 >, InputGenericAcyclic< Int64 >, InputGenericAcyclic< Int16 >, InputGenericAcyclic< bool >, InputGenericAcyclic< Int8 >, InputGenericAcyclic< Int32 >, InputGenericAcyclic< Float64 >, InputGenericCyclic< ElementType >, InputGenericCyclic< Float32 >, InputGenericCyclic< Int64 >, InputGenericCyclic< Int16 >, InputGenericCyclic< bool >, InputGenericCyclic< Int8 >, InputGenericCyclic< Int32 >, and InputGenericCyclic< Float64 >.
