IoTechnology base class. More...
IoTechnology base class.

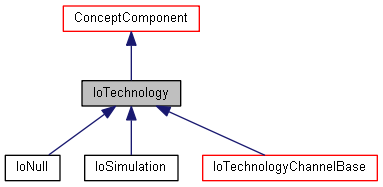

Inheritance diagram for IoTechnology:Public Member Methods | |
| void | Accept (IContainerVisitor &visitor) |
| Accepts IContainerVisitor to access the object published fields. More... | |
| void | Invoke (const DynamicInvocationRequest &request, DynamicInvocationResult &result) |
| Invokes the object fields and methods. More... | |
| virtual bool | IsAlive ()=0 |
| Query if the technology is alive. More... | |
| bool | IsActivated () |
| Query if the technology has been activated. More... | |
| void | Activate () |
| Activate the technology. More... | |
| void | Deactivate () |
| Deactivate the technology. More... | |
| virtual void | GetMappingItemFactories (BaseConceptFactories &factories)=0 |
| Retrives the mapping factories provided by the technology. More... | |
| Public Member Methods inherited from ConceptComponent | |
| ConceptComponent () | |
| Default constructor. More... | |
| ~ConceptComponent () | |
| Destructor. More... | |
| void | GetChildren (IReferenceList< ConceptElement > &children) |
| Gets the children of this component. More... | |
| ConceptElement & | AddNew (const BaseConceptFactory &factory, const PCChar8 name) |
| Adds a new element to the component. More... | |
| void | ReadFrom (IDataStore &dataStore, IMessageCollector *messages=NULL) |
| Reads from. More... | |
| void | WriteTo (IDataStore &dataStore) const |
| Writes to. More... | |
| void | Clear () |
| Clears the content of this container. More... | |
| Public Member Methods inherited from ConceptContainer | |
| const bool & | GetIsXmlPropertyVisible () const |
| Show the xml field in the invocation. More... | |
| const bool & | GetIsXmlPropertyVisible () |
| Show the xml field in the invocation. More... | |
| void | SetIsXmlPropertyVisible (const bool &value) |
| Show the xml field in the invocation. More... | |
| const bool & | GetIsXmlPropertyReadOnly () const |
| Control access on the xml file shown in the invocation. More... | |
| const bool & | GetIsXmlPropertyReadOnly () |
| Control access on the xml file shown in the invocation. More... | |
| void | SetIsXmlPropertyReadOnly (const bool &value) |
| Control access on the xml file shown in the invocation. More... | |
| ConceptContainer () | |
| Default constructor. More... | |
| ~ConceptContainer () | |
| Destructor. More... | |
| bool | Contains (ConceptElement &element) const |
| Query if this object contains the given element. More... | |
| void | ResolveLinks () |
| Resolve links. More... | |
| ConceptElement * | Find (const PCChar8 path) const |
| Searches into the container and sub-containers an element. More... | |
| virtual ConceptElement * | FindByName (const PCChar8 name) const |
| Searches into the container an element. More... | |
| template<class ElementSubType > | |
| ElementSubType * | FindByName (const PCChar8 name) const |
| Searches into the container an element of a certain type. More... | |
| void | RetrieveProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter) |
| Retrieve provided factories. More... | |
| void | RetrieveProvidedFactories (BaseConceptFactories &factories) |
| RetrieveProvidedFactories. More... | |
| void | RetrieveFactories (BaseConceptFactories &factories) const |
| Retrieve factories. More... | |
| Public Member Methods inherited from ConceptElement | |
| const bool & | GetIsInvocable () const |
| Controls if the objet should be shown in the invocation. More... | |
| const bool & | GetIsInvocable () |
| Controls if the objet should be shown in the invocation. More... | |
| void | SetIsInvocable (const bool &value) |
| Controls if the objet should be shown in the invocation. More... | |
| const bool & | GetIsSerialized () const |
| Controls if the objet should be serialized. More... | |
| const bool & | GetIsSerialized () |
| Controls if the objet should be serialized. More... | |
| void | SetIsSerialized (const bool &value) |
| Controls if the objet should be serialized. More... | |
| ConceptElement () | |
| Default constructor. More... | |
| ConceptElement (const ConceptElement &right) | |
| Default constructor. More... | |
| ConceptElement & | operator= (const ConceptElement &right) |
| Assignment operator. More... | |
| const StaticString< ConceptElementNameMaxLength > & | GetName () const |
| Gets the name. More... | |
| void | SetName (const PCChar8 name) |
| Sets a name. More... | |
| String | GetPath () const |
| Gets the path of the ConceptElement. More... | |
| ConceptContainer * | GetContainer () const |
| Gets the container of the ConceptElement. More... | |
| template<class ContainerType > | |
| ContainerType * | GetContainerOfType () const |
| Gets the container of a certain type the ConceptElement. More... | |
| ConceptContainer * | GetRootContainer () const |
| Gets the root container of the ConceptElement. More... | |
| virtual const String | GetDisplayName () const |
| Gets the display name. More... | |
| virtual void | CopyDataFrom (const ConceptElement &source) |
| Copies the data from another ConceptElement. More... | |
| virtual void | CopyFrom (const ConceptElement &source) |
| Copies itself from a given source. More... | |
| virtual BaseConceptFactory & | GetFactory () const =0 |
| Gets the ConceptElement factory. More... | |
| ConceptElement & | GetProvider () const |
| Gets the provider of the ConceptElement if defined, throws a ConceptException otherwise. More... | |
| template<class T > | |
| T & | GetProvider () const |
| Gets the provider of the ConceptElement if defined and of type T, throws a ConceptException otherwise. More... | |
| bool | GetHasProvider () const |
| Tests the existence of a provider. More... | |
| template<class T > | |
| bool | GetHasProvider () const |
| Tests the existence of a provider of type T. More... | |
| virtual ConceptElement * | Clone () const |
| Makes a deep copy of this object. More... | |
| void | RetrieveProvidedFactories (BaseConceptFactories &factories) |
| Retrieve provided factories. More... | |
| Variant | GetPropertyMetaData (PCChar8 propertyName, PCChar8 metaDataName, const Variant &defaultValue=Variant::GetVariantNull()) const |
| Returns a metadata string corresponding to a property and a metadata name. More... | |
Protected Member Functions | |
| virtual void | InternalActivate ()=0 |
| Internal activation of the technology. More... | |
| virtual void | InternalDeactivate ()=0 |
| Internal deactivation of the technology. More... | |
| void | Initialize () |
| Initialize called by the CONCEPT_BEGIN macros to initialize the values. More... | |
| Protected Member Functions inherited from ConceptContainer | |
| virtual Int32 | Add (ConceptElement &element) |
| Adds element. More... | |
| virtual Int32 | Add (ConceptElement &element, const PCChar8 name) |
| Adds element. More... | |
| Protected Member Functions inherited from ConceptElement | |
| void | Initialize () |
| Initializes this object. More... | |
| virtual BaseConceptFactory & | InternalGetFactory () const |
| Gets the object factory. More... | |
| virtual void | RetrieveElementProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter) |
| RetrieveElementProvidedFactories. Used by the macro CONCEPT_PROVIDED_COMPONENT_BEGIN More... | |
|
inlinevirtual |
Accepts IContainerVisitor to access the object published fields.
| visitor | [in,out] The visitor. |
Reimplemented from ConceptContainer.
Reimplemented in IoSimulation, IoTechnologyChannel, IoNull, and IoTechnologyChannelBase.
| void Activate | ( | ) |
Activate the technology.
Calls IntenalActivate()
| void Deactivate | ( | ) |
Deactivate the technology.
Calls IntenalDeactivate()
|
pure virtual |
Retrives the mapping factories provided by the technology.
| factories | [in, out] The factories list to populate. |
Implemented in IoSimulation, IoNull, and IoTechnologyChannelBase.
|
protected |
Initialize called by the CONCEPT_BEGIN macros to initialize the values.
|
protectedpure virtual |
Internal activation of the technology.
Implemented in IoSimulation, IoTechnologyChannel, IoNull, and IoTechnologyChannelBase.
|
protectedpure virtual |
Internal deactivation of the technology.
Implemented in IoSimulation, IoNull, and IoTechnologyChannelBase.
|
inlinevirtual |
Invokes the object fields and methods.
| request | The request. |
| result | [in,out] The result. |
Dynamic Invocation on IInvocable objects enables us to have remote access on published fields and methods.
Reimplemented from ConceptContainer.
| bool IsActivated | ( | ) |
Query if the technology has been activated.
|
pure virtual |
Query if the technology is alive.
Implemented in IoSimulation, IoNull, and IoTechnologyChannelBase.
