ConceptList Class Reference

ConceptList. Base class of ConceptStaticList and ConceptDynamicList More...

Detailed Description

ConceptList. Base class of ConceptStaticList and ConceptDynamicList

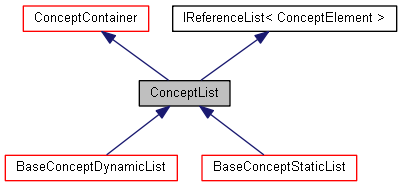

Inheritance diagram for ConceptList:

Public Member Methods
	ConceptList ()
	Default constructor. More...
	ConceptList (const ConceptList &right)
	Default constructor. More...
ConceptList &	operator= (const ConceptList &right)
	Assignment operator. More...
Int32	GetCount () const
	Gets the number of element contained. More...
Int32	Add (ConceptElement &element)
	Adds element. More...
Int32	Add (ConceptElement &element, const PCChar8 name)
	Adds element. More...
void	AddRange (const IReferenceList< ConceptElement > &list)
	Adds a range of element. More...
void	Clear ()
	Clears the content of this container. More...
void	RemoveAt (Int32 index)
	Removes a reference at index. More...
void	Insert (Int32 index, ConceptElement &element)
	Inserts a reference. More...
void	Exchange (Int32 index1, Int32 index2)
	Exchanges two references. More...
void	Move (Int32 index1, Int32 index2)
	Moves a reference. More...
bool	IndexValid (Int32 index) const
	Query if index is valid. More...
Int32	IndexOf (const ConceptElement &element) const
	Index of the given reference. More...
Int32	Remove (const ConceptElement &element)
	Removes an reference at index. More...
ConceptElement &	Swap (ConceptElement &element, Int32 index)
	Swaps. More...
bool	GetFull () const
	Query if the reference list is full. More...
bool	GetEmpty () const
	Query if the reference list is empty. More...
ConceptElement &	operator[] (Int32 index) const
	Array indexer operator. More...
void	Accept (IContainerVisitor &visitor)
	Accepts IContainerVisitor to access the object published fields. More...
bool	IsNameUnique (PCChar8 name, ConceptElement *element=NULL)
	Query if 'name' is an unique name . More...
String	GenerateUniqueName (PCChar8 baseName="Item", ConceptElement *element=NULL)
	Generates a unique name. More...
Public Member Methods inherited from ConceptContainer
const bool &	GetIsXmlPropertyVisible () const
	Show the xml field in the invocation. More...
const bool &	GetIsXmlPropertyVisible ()
	Show the xml field in the invocation. More...
void	SetIsXmlPropertyVisible (const bool &value)
	Show the xml field in the invocation. More...
const bool &	GetIsXmlPropertyReadOnly () const
	Control access on the xml file shown in the invocation. More...
const bool &	GetIsXmlPropertyReadOnly ()
	Control access on the xml file shown in the invocation. More...
void	SetIsXmlPropertyReadOnly (const bool &value)
	Control access on the xml file shown in the invocation. More...
	ConceptContainer ()
	Default constructor. More...
	~ConceptContainer ()
	Destructor. More...
bool	Contains (ConceptElement &element) const
	Query if this object contains the given element. More...
void	ResolveLinks ()
	Resolve links. More...
void	Invoke (const DynamicInvocationRequest &request, DynamicInvocationResult &result)
	Invokes the object fields and methods. More...
ConceptElement *	Find (const PCChar8 path) const
	Searches into the container and sub-containers an element. More...
virtual ConceptElement *	FindByName (const PCChar8 name) const
	Searches into the container an element. More...
template<class ElementSubType >
ElementSubType *	FindByName (const PCChar8 name) const
	Searches into the container an element of a certain type. More...
void	RetrieveProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	Retrieve provided factories. More...
void	RetrieveProvidedFactories (BaseConceptFactories &factories)
	RetrieveProvidedFactories. More...
void	RetrieveFactories (BaseConceptFactories &factories) const
	Retrieve factories. More...
Public Member Methods inherited from ConceptElement
const bool &	GetIsInvocable () const
	Controls if the objet should be shown in the invocation. More...
const bool &	GetIsInvocable ()
	Controls if the objet should be shown in the invocation. More...
void	SetIsInvocable (const bool &value)
	Controls if the objet should be shown in the invocation. More...
const bool &	GetIsSerialized () const
	Controls if the objet should be serialized. More...
const bool &	GetIsSerialized ()
	Controls if the objet should be serialized. More...
void	SetIsSerialized (const bool &value)
	Controls if the objet should be serialized. More...
	ConceptElement ()
	Default constructor. More...
	ConceptElement (const ConceptElement &right)
	Default constructor. More...
ConceptElement &	operator= (const ConceptElement &right)
	Assignment operator. More...
const StaticString< ConceptElementNameMaxLength > &	GetName () const
	Gets the name. More...
void	SetName (const PCChar8 name)
	Sets a name. More...
String	GetPath () const
	Gets the path of the ConceptElement. More...
ConceptContainer *	GetContainer () const
	Gets the container of the ConceptElement. More...
template<class ContainerType >
ContainerType *	GetContainerOfType () const
	Gets the container of a certain type the ConceptElement. More...
ConceptContainer *	GetRootContainer () const
	Gets the root container of the ConceptElement. More...
virtual const String	GetDisplayName () const
	Gets the display name. More...
virtual void	CopyDataFrom (const ConceptElement &source)
	Copies the data from another ConceptElement. More...
virtual void	CopyFrom (const ConceptElement &source)
	Copies itself from a given source. More...
virtual void	ReadFrom (IDataStore &dataStore, IMessageCollector *messages=NULL)=0
	Reads from. More...
virtual void	WriteTo (IDataStore &dataStore) const =0
	Writes to. More...
virtual BaseConceptFactory &	GetFactory () const =0
	Gets the ConceptElement factory. More...
ConceptElement &	GetProvider () const
	Gets the provider of the ConceptElement if defined, throws a ConceptException otherwise. More...
template<class T >
T &	GetProvider () const
	Gets the provider of the ConceptElement if defined and of type T, throws a ConceptException otherwise. More...
bool	GetHasProvider () const
	Tests the existence of a provider. More...
template<class T >
bool	GetHasProvider () const
	Tests the existence of a provider of type T. More...
virtual ConceptElement *	Clone () const
	Makes a deep copy of this object. More...
void	RetrieveProvidedFactories (BaseConceptFactories &factories)
	Retrieve provided factories. More...
Variant	GetPropertyMetaData (PCChar8 propertyName, PCChar8 metaDataName, const Variant &defaultValue=Variant::GetVariantNull()) const
	Returns a metadata string corresponding to a property and a metadata name. More...

Additional Inherited Members
Protected Member Functions inherited from ConceptElement
void	Initialize ()
	Initializes this object. More...
virtual BaseConceptFactory &	InternalGetFactory () const
	Gets the object factory. More...
virtual void	RetrieveElementProvidedFactories (BaseConceptFactories &factories, const Predicate< BaseConceptFactory & > &filter)
	RetrieveElementProvidedFactories. Used by the macro CONCEPT_PROVIDED_COMPONENT_BEGIN More...

Constructor & Destructor Documentation

ConceptList

(

)

Default constructor.

ConceptList

(

const ConceptList &

right

)

Default constructor.

Parameters

right

The right.

Methods Documentation

void Accept ( IContainerVisitor &  visitor )

virtual

Accepts IContainerVisitor to access the object published fields.

Parameters

visitor

[in,out] The visitor.

Reimplemented from ConceptContainer.

Int32 Add ( ConceptElement &  element )

virtual

Adds element.

Parameters

element

[in,out] The ConceptElement& to add.

Returns

Position index of the added element.

Warning

Non-Deterministic: The inner list of elements may be extended that may lead to memory allocation. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Ownership: The element will be owned by the list. The element must be previously created on the heap. If element is created on the stack this will leads to ACCESS_VIOLATION exception because the element will be deleted twice. This kind of situation is hard to debug.

Reimplemented from ConceptContainer.

Int32 Add ( ConceptElement &  element, const PCChar8  name  )

virtual

Adds element.

Parameters

element	[in,out] The ConceptElement& to add.
name	The element's name.

Returns

Position index of the added element.

Warning

Non-Deterministic: The inner list of elements may be extended that may lead to memory allocation. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Ownership: The element will be owned by the list. The element must be previously created on the heap. If element is created on the stack this will leads to ACCESS_VIOLATION exception because the element will be deleted twice. This kind of situation is hard to debug.

Reimplemented from ConceptContainer.

void AddRange ( const IReferenceList< ConceptElement > &  list )

virtual

Adds a range of element.

Parameters

list	A const IReferenceList<ConceptElement> & of items to append to this.

Warning

Non-Deterministic: The inner list of elements may be extended that may lead to memory allocation. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Ownership: The elements will be owned by the list. The elements must be previously created on the heap. If elements are created on the stack this will leads to ACCESS_VIOLATION exception because the elements will be deleted twice. This kind of situation is hard to debug.

Implements IReferenceList< ConceptElement >.

void Clear ( )

virtual

Clears the content of this container.

Warning

Non-Deterministic: Deletion of content will remove items from the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Implements ConceptContainer.

Reimplemented in BaseConceptStaticList.

void Exchange ( Int32  index1, Int32  index2  )

virtual

Exchanges two references.

Parameters

index1	The first reference index.
index2	The second reference index.

RT Exceptions:

RT_ERROR_OUT_OF_BOUND_INDEX

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

String GenerateUniqueName	(	PCChar8	baseName = "Item",
		ConceptElement *	element = NULL
	)

Generates a unique name.

Parameters

baseName	(optional) name of the base.
element	[in,out] (Optional) The ConceptElement& for which the name is generated. Default is NULL.

Returns

The generated unique name.

Int32 GetCount ( ) const

virtual

Gets the number of element contained.

Returns

The number of element.

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

bool GetEmpty ( ) const

virtual

Query if the reference list is empty.

Returns

true if it empty.

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

bool GetFull ( ) const

virtual

Query if the reference list is full.

Returns

true if it full.

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

Int32 IndexOf ( const ConceptElement &  value ) const

virtual

Index of the given reference.

Parameters

value

The reference.

Returns

this index of the given reference or InvalidIndex if not found.

Implements IReferenceList< ConceptElement >.

bool IndexValid ( Int32  index ) const

virtual

Query if index is valid.

Parameters

index

Zero-based index of the.

Returns

true if it valid.

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

void Insert ( Int32  index, ConceptElement &  element  )

virtual

Inserts a reference.

Parameters

index	Index where to insert the reference.
element	The element to insert.

Warning

Non-Deterministic: The inner list of elements may be extended that may lead to memory allocation. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

RT Exceptions:

RT_ERROR_OUT_OF_BOUND_INDEX

Warning

Ownership: The element will be owned by the list. The element must be previously created on the heap. If element is created on the stack this will leads to ACCESS_VIOLATION exception because the element will be deleted twice. This kind of situation is hard to debug.

Implements IReferenceList< ConceptElement >.

bool IsNameUnique	(	PCChar8	name,
		ConceptElement *	element = NULL
	)

Query if 'name' is an unique name .

Parameters

name	The element's name.
element	[in,out] (optional) The ConceptElement& of the given name. Default is NULL.

Returns

true if name unique, false if not.

Warning : The uniqueness of the name is not checked by default in ConceptComponent

void Move ( Int32  index1, Int32  index2  )

virtual

Moves a reference.

Parameters

index1	The reference index to move.
index2	The destination index.

RT Exceptions:

RT_ERROR_OUT_OF_BOUND_INDEX

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

ConceptList& operator=

(

const ConceptList &

right

)

Assignment operator.

Parameters

right

The right.

Returns

A shallow copy of this object.

ConceptElement& operator[] ( Int32  index ) const

virtual

Array indexer operator.

Parameters

index

Zero-based index of the reference.

Returns

The indexed reference.

Implements IReferenceList< ConceptElement >.

Int32 Remove ( const ConceptElement &  element )

virtual

Removes an reference at index.

Parameters

element

The element to remove.

Returns

the index of the removed element or InvalidIndex if not found.

Warning

Non-Deterministic: Remove the element from the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

RT Exceptions:

RT_ERROR_OUT_OF_BOUND_INDEX

Implements IReferenceList< ConceptElement >.

void RemoveAt ( Int32  index )

virtual

Removes a reference at index.

Parameters

index

Zero-based index of the reference.

RT Exceptions:

RT_ERROR_OUT_OF_BOUND_INDEX

Warning

Non-Deterministic: Remove the element from the heap. Determinism when using ConceptRT library can be ensure by using Context Time Critical mechanisms.

Implements IReferenceList< ConceptElement >.

Reimplemented in BaseConceptStaticList.

ConceptElement& Swap ( ConceptElement &  element, Int32  index  )

virtual

Swaps.

Parameters

element	[in,out] The element to swap.
index	Zero-based index defining where to swap.

Returns

The removed element by the swap.

Warning

Don't forget to delete the returned element. Moreover check the name of the new element. It shouldn't be the same than other concept element in the list.

Implements IReferenceList< ConceptElement >.
